Puree Tank

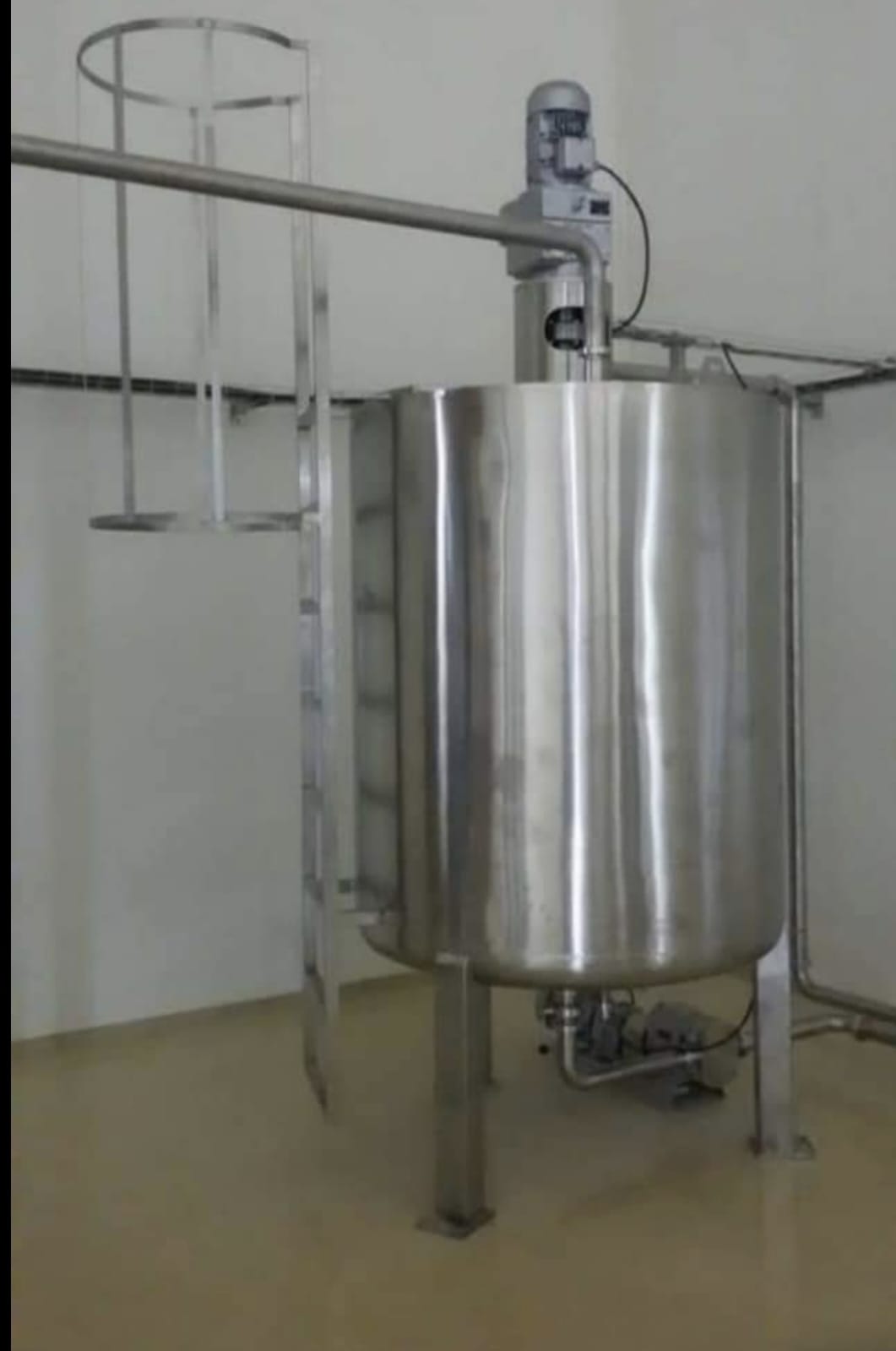

5 m³ DOUBLE WALL SERPENTINE STOCK TANK WITH MIXER TECHNICAL SPECIFICATIONS

  • Stock tank dimensions: Ø 1800 mm, Height 3950 mm (including reducer, bowls and feet)
  • Motors: 4 Kw 25 d/d flange type mixer reducer
  • Mixer: Made of complete AISI 304 quality stainless steel shaft, blades and sheets
  • Legs: 150x150x4 mm 3 legs - Bowls: Torispheric camber
  • Serpentine outside the inner vessel - Rockwool coating between the jacket (Cidar)
  • Outer sheath made of AISI 304 quality stainless steel 2 mm thick sheet
  • There will be a capped inlet, ventilation pipe and temperature indicator on the tank.
  • Tank interior and exterior, mixer shaft and blades, feet and bowls are completely made of AISI 304 quality stainless steel material.
  • with level sensor
  • Welded joints are argon gas and 308L stainless wire welded
