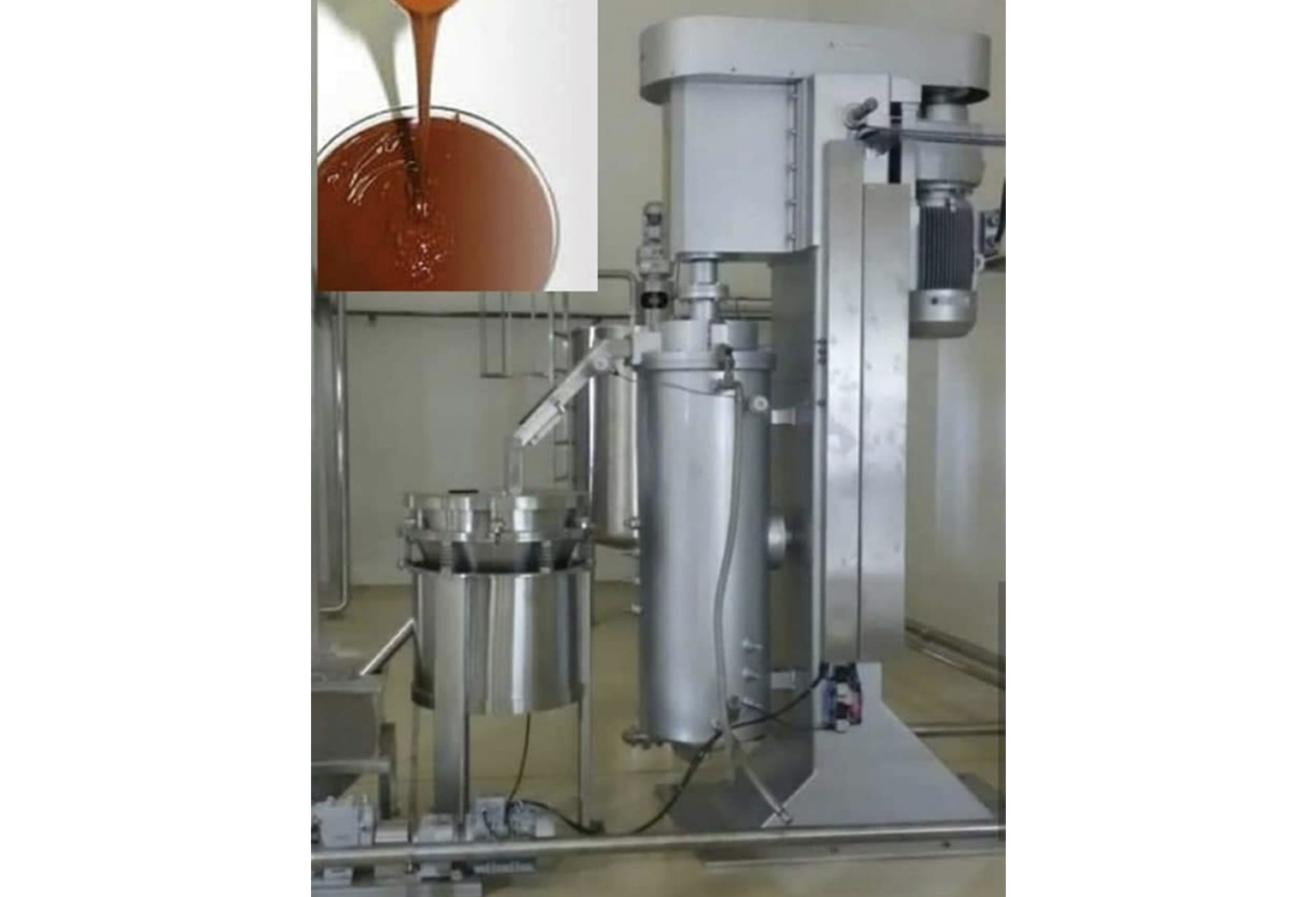

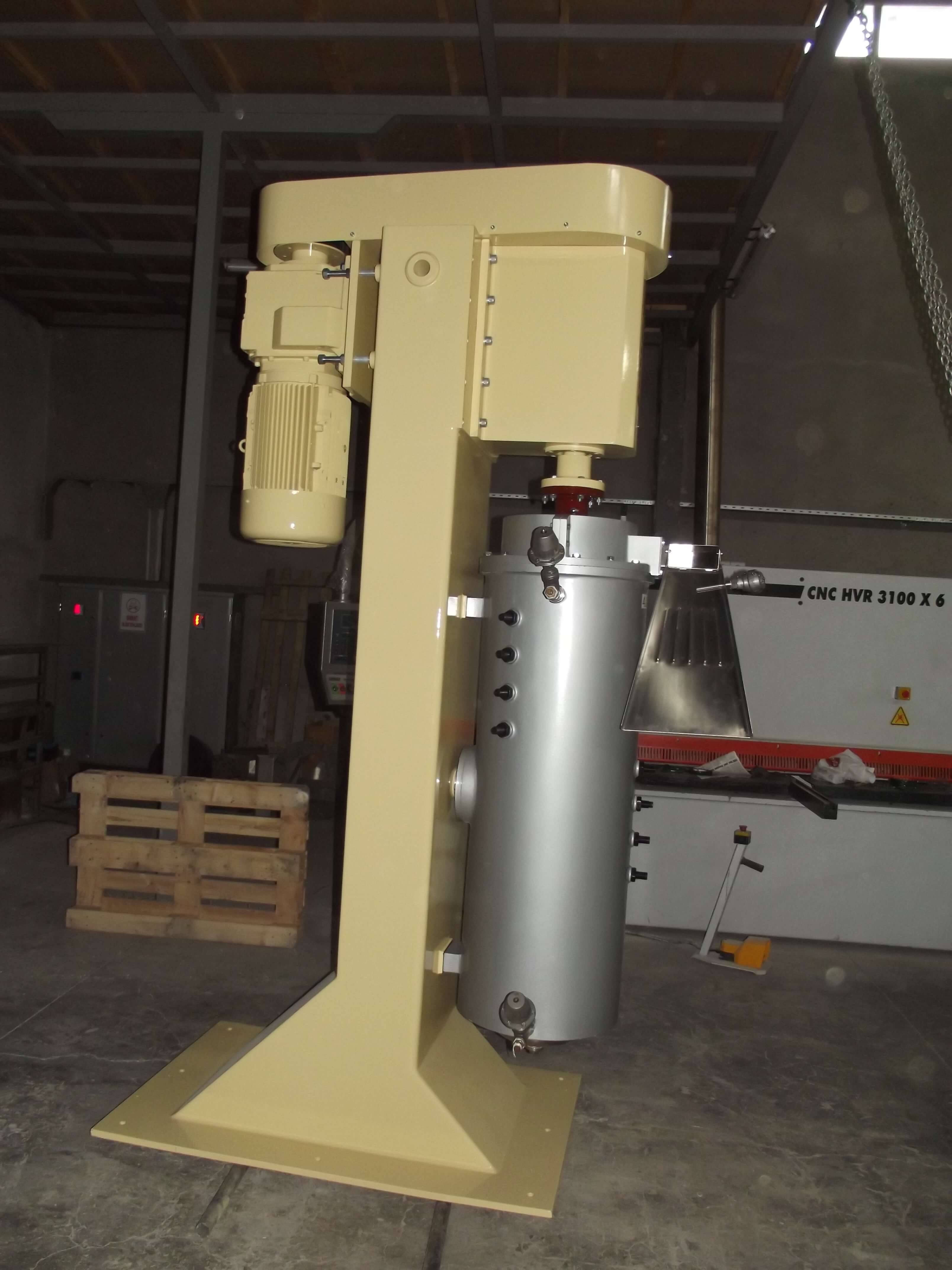

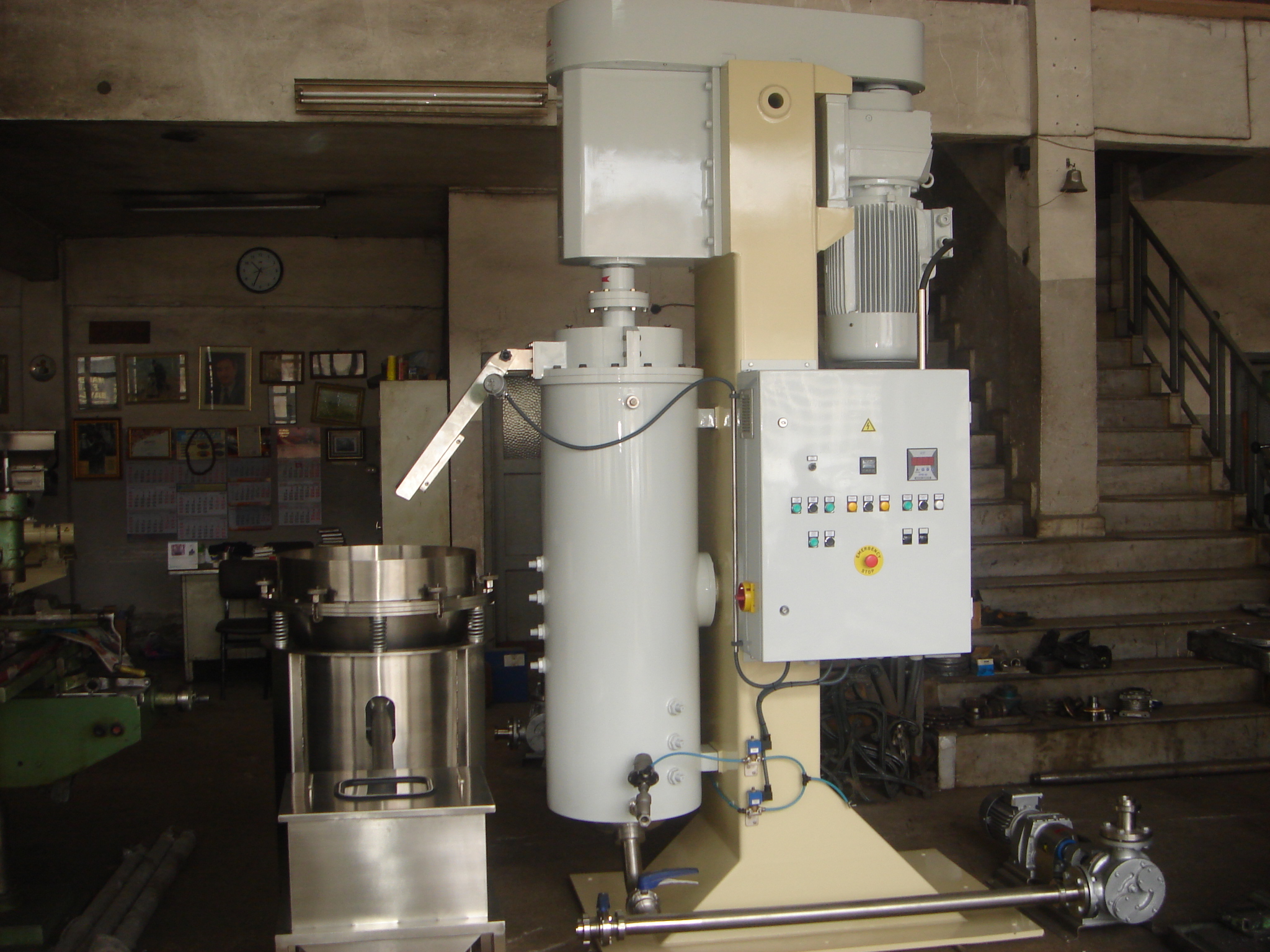

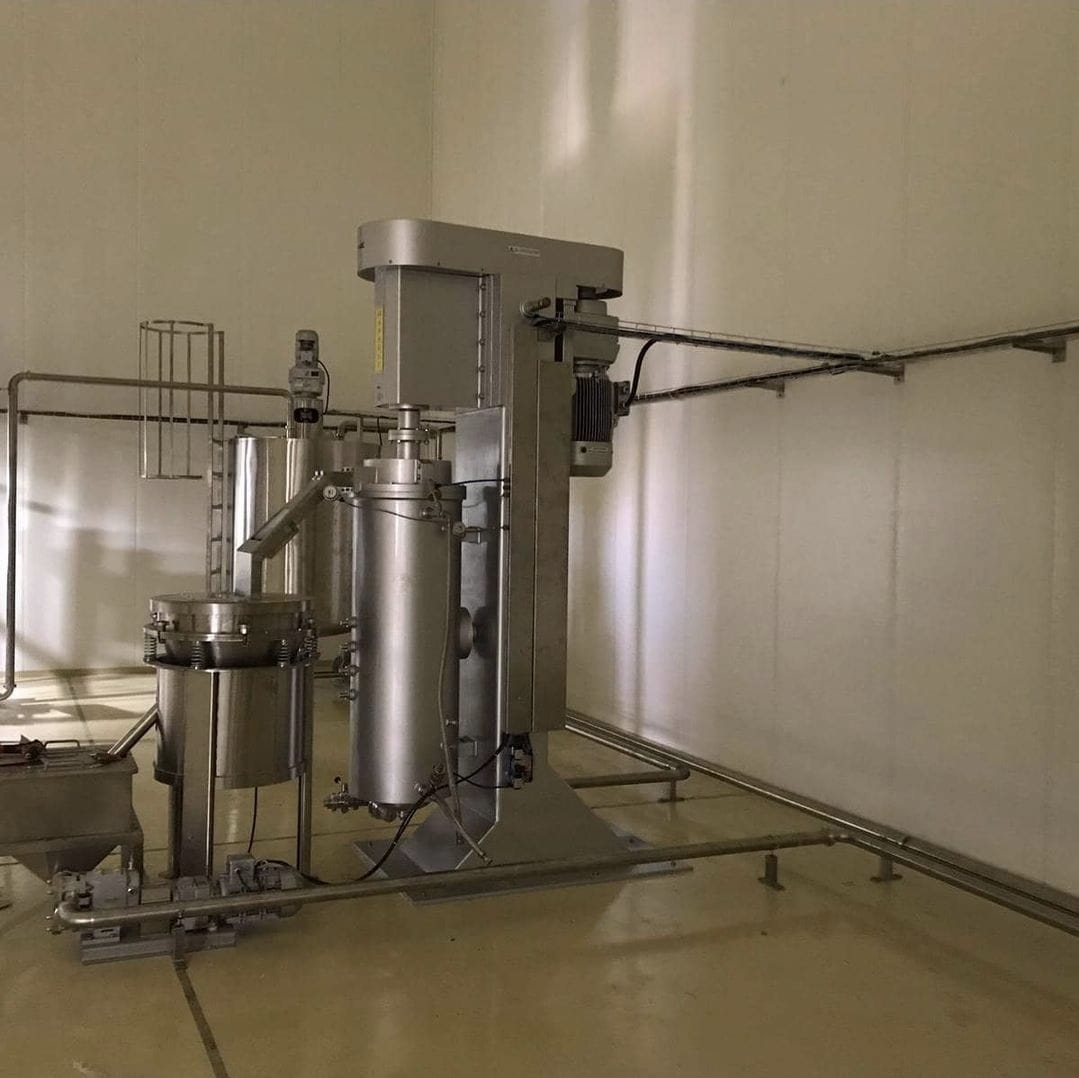

Thinner



  • It is a ball system machine in which the product that is crushed in the pre-crusher is thinned.

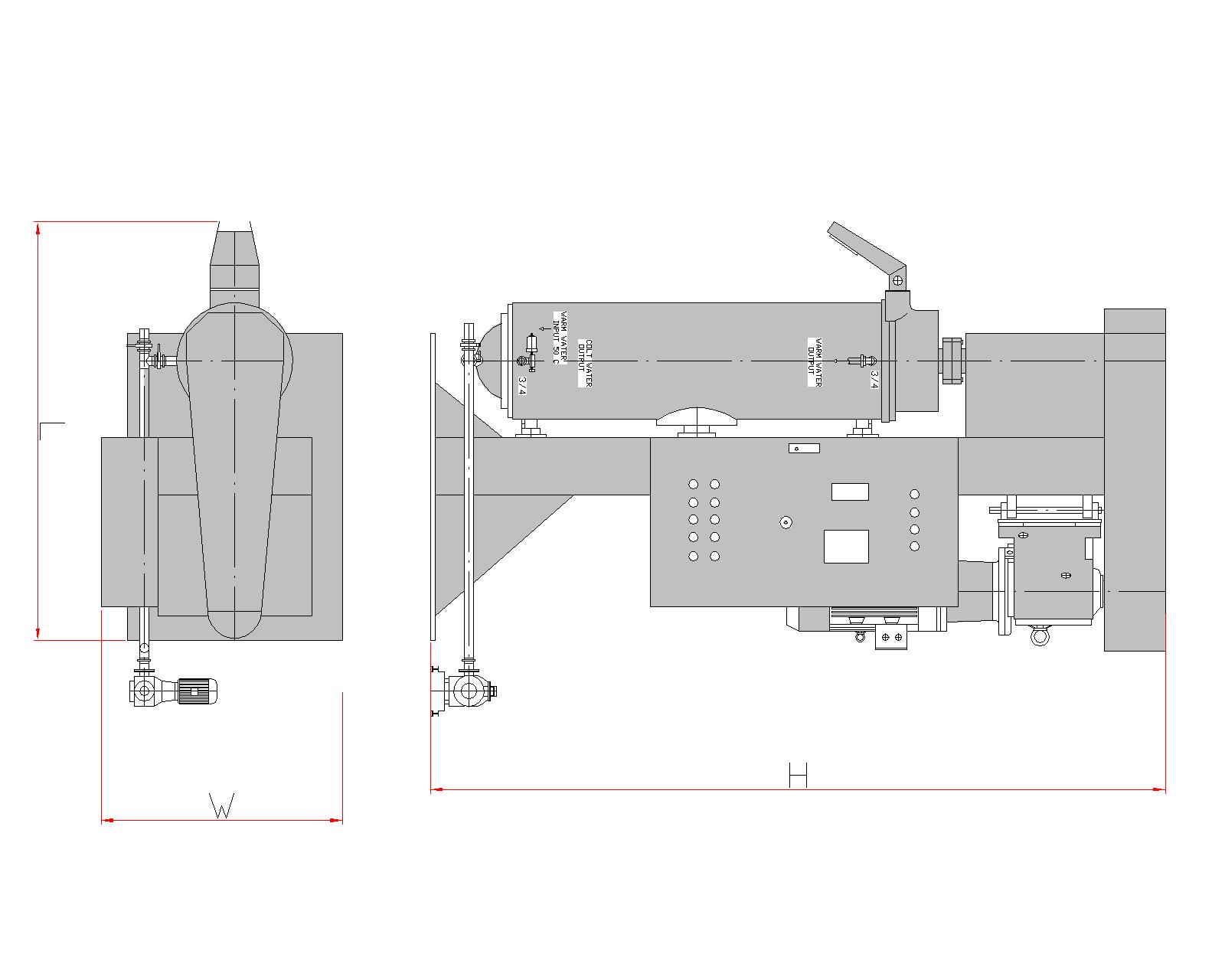

  • Machine dimensions: Width 1070 mm, Length 1890 mm, Height 2990 mm
  • Capacity: 500-600 Kg/h 200 micron thick
  • Motors: 1 x 22 kw geared main motor
  • Main shaft, agitator shafts and plates: made of Böhler 2379 hard steel
  • Boiler: Inside made of 8mm thick AISI 304 quality stainless steel material, outside 5mm thick St 42 material painted
  • Machine Body: Made of St 42 material, painted
  • Water inlets and outlets: 3/4” (Tork brand normally closed pneumatic valve and solenoid valve controlled)
  • Product inlet: 2” AISI 304 quality stainless steel pipe, butterfly valve and record
  • Pulley and Belt: 14 M Timing pulley and belt
  • Thinner balls: 700 kg round grain balls with 6.35 mm thickness
