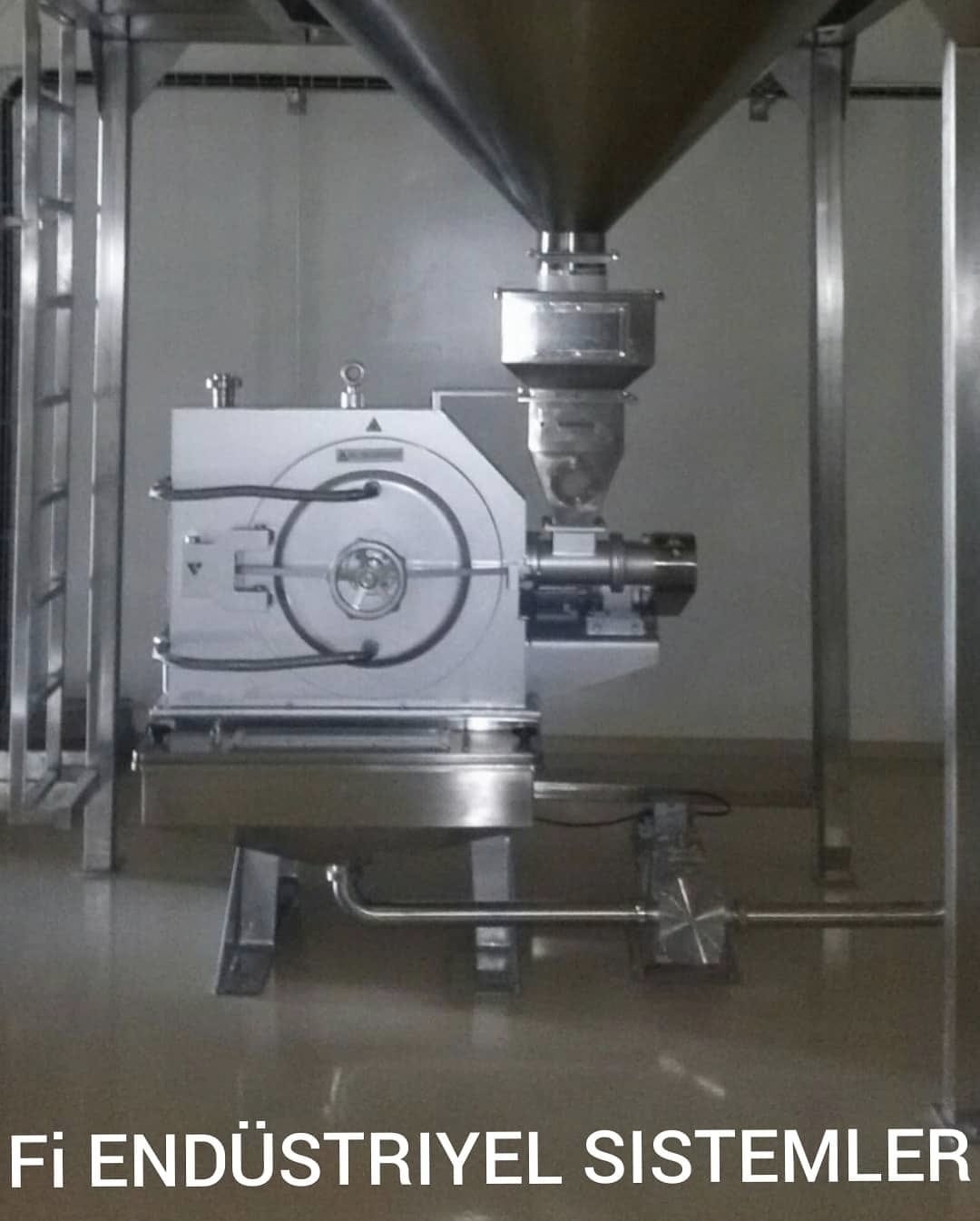

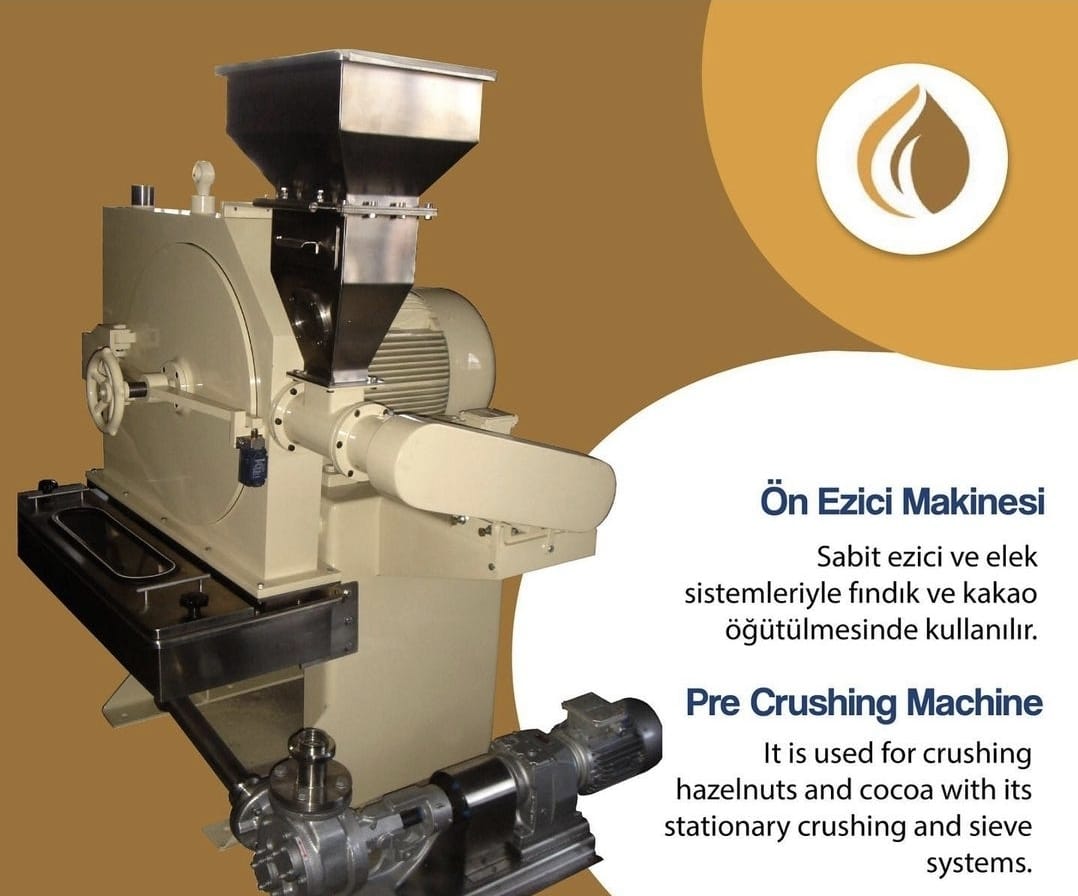

Pre-Crusher
Pre-Crusher
PRE-CRUSHING TECHNICAL SPECIFICATIONS
- It is a ball system machine in which the product that is crushed in the pre-crusher is thinned.
- Machine dimensions: Width 1070 mm, Length 1890 mm, Height 2990 mm
- Capacity: 500-600 Kg/h 200 micron thick
- Motors: 1 x 22 kw geared main motor
- Main shaft, agitator shafts and plates: made of Böhler 2379 hard steel
- Boiler: Inside made of 8mm thick AISI 304 quality stainless steel material, outside 5mm thick St 42 material painted
- Machine Body: Made of St 42 material, painted
- Water inlets and outlets: 3/4” (Tork brand normally closed pneumatic valve and solenoid valve controlled)
- Product inlet: 2” AISI 304 quality stainless steel pipe, butterfly valve and record
- Pulley and Belt: 14 M Timing pulley and belt - Thinner balls: 6,35 mm thick 700 kg round grain balls
