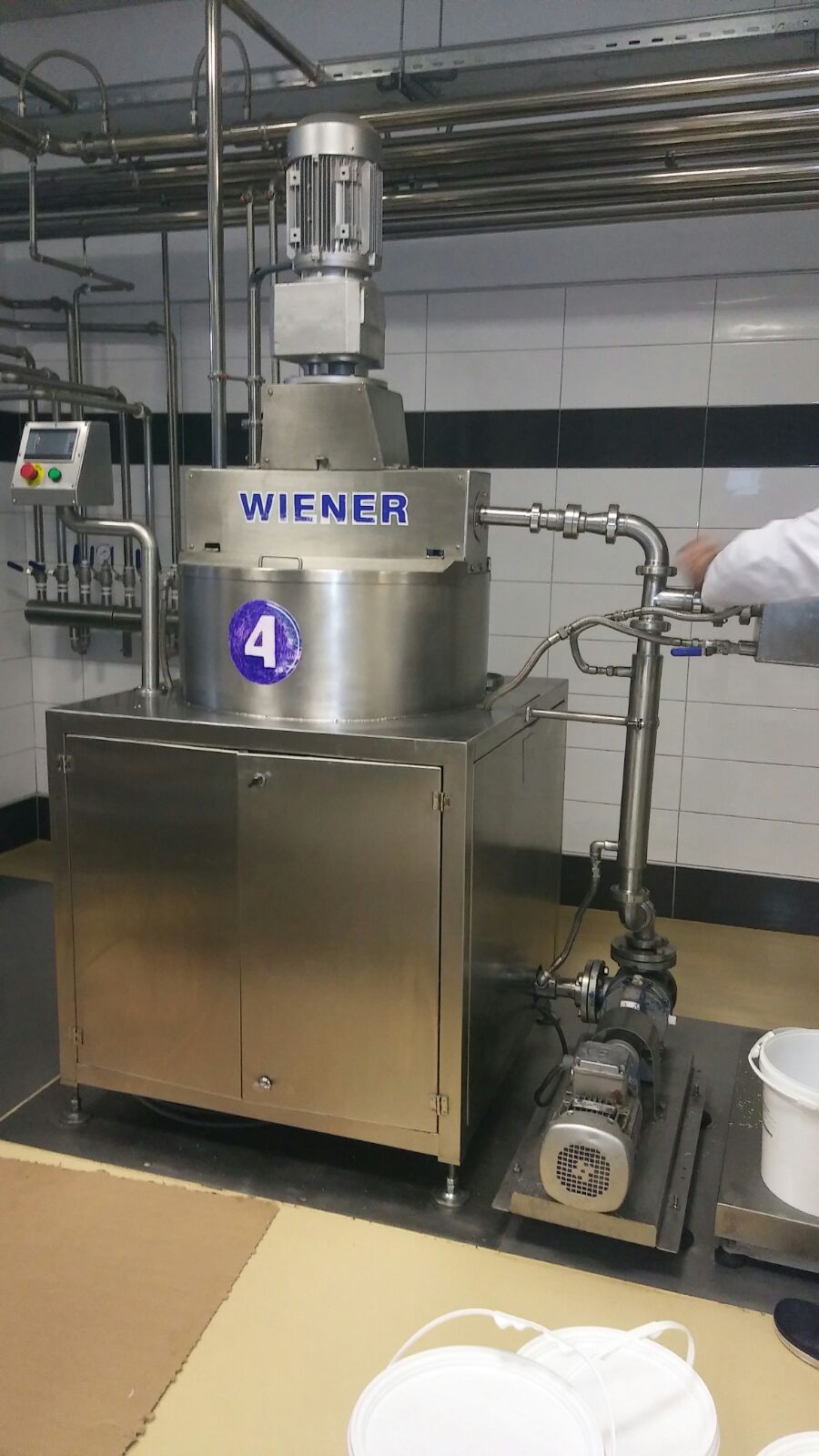

Cream Wiener



CREAM WIENER (MELENJOR) TECHNICAL SPECIFICATIONS

  •  Machine dimensions: Width: 2000 mm Length: 2000 mm Height: 3600 mm (existing platform)
  • Inner body made of AISI 304 quality 5 mm stainless material.
  • Outer body made of AISI 304 quality 3 mm stainless material.

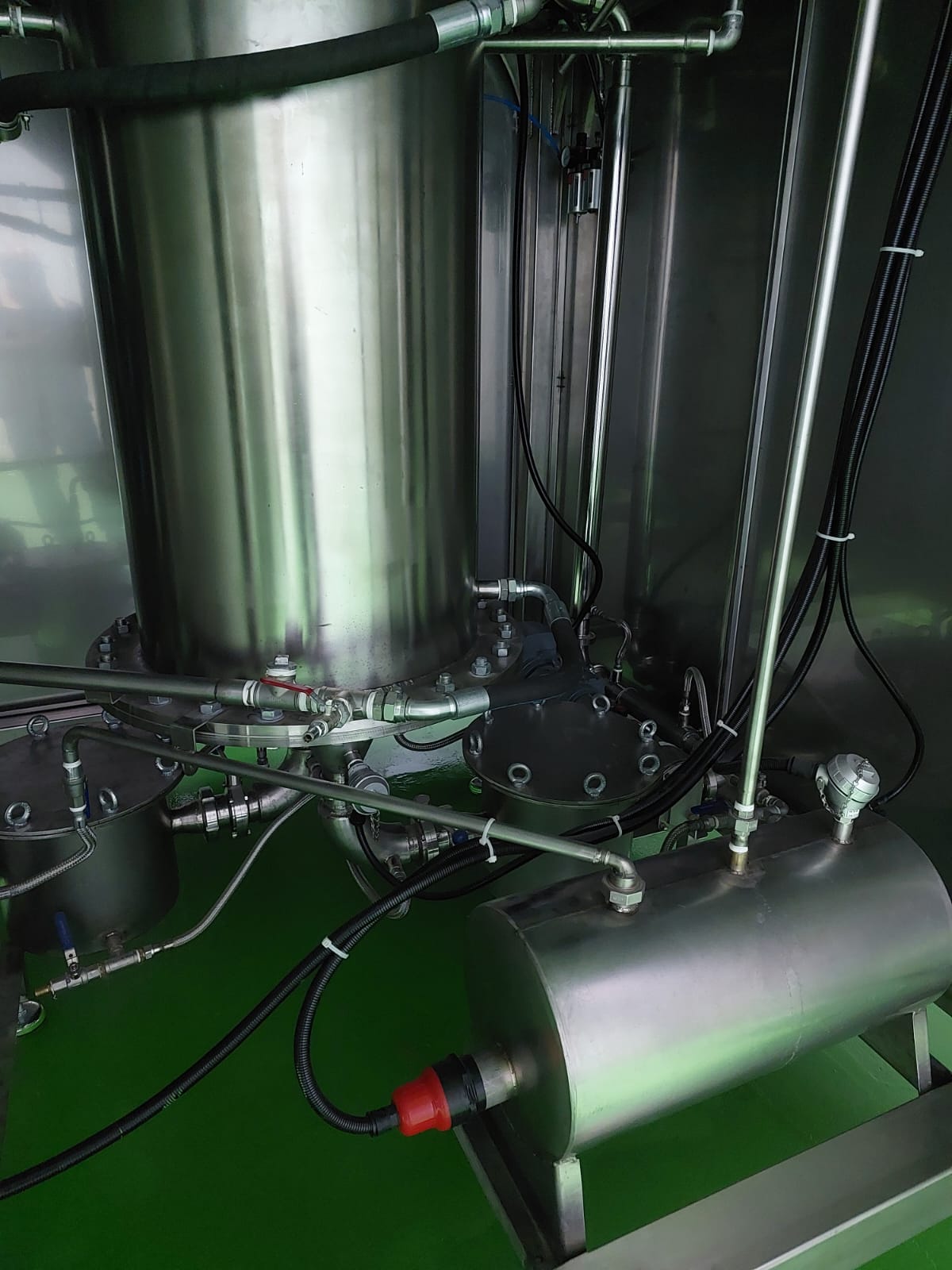

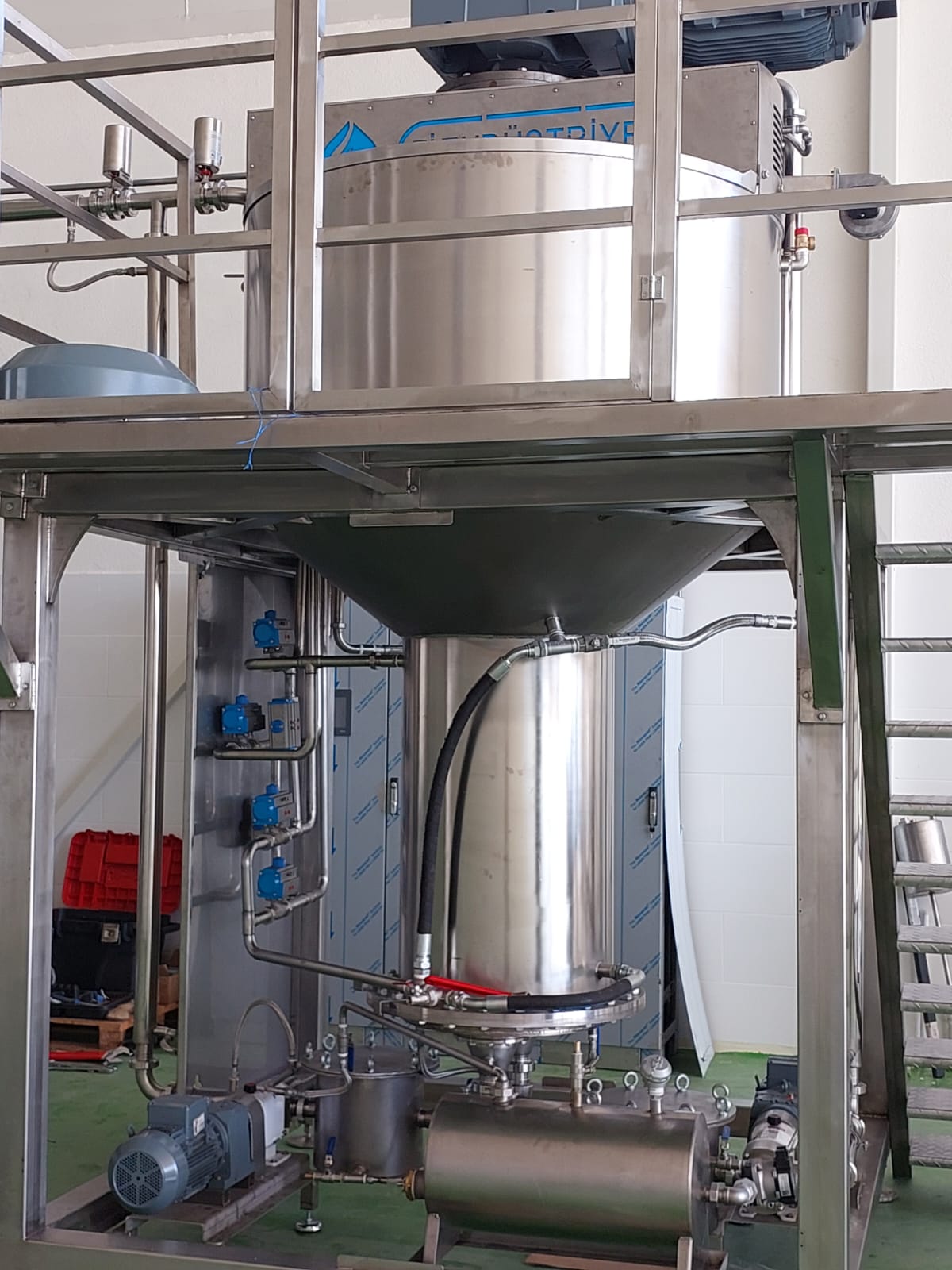

  • Ball chamber made of AISI 304 quality 8 mm stainless material.
  • Sensitive touch screen and PLC controlled.
  • Easy to understand on-screen menus.

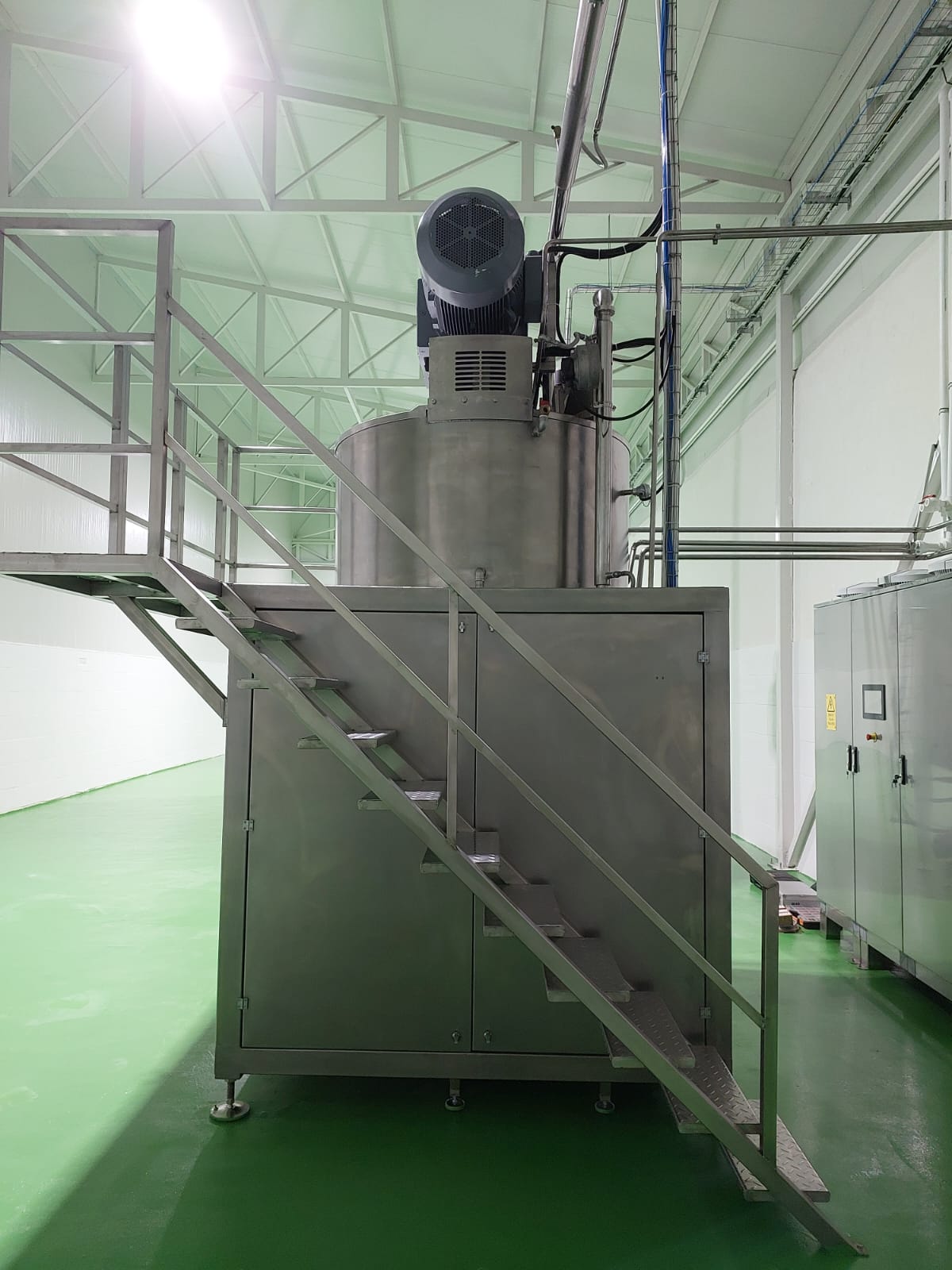

  • 37 KW 97 D/DK KR773 body, YILMAZ brand gearmotor.
  • 3/8" diameter steel ball with 60-62 rockwell hardness weighing 600 kg.

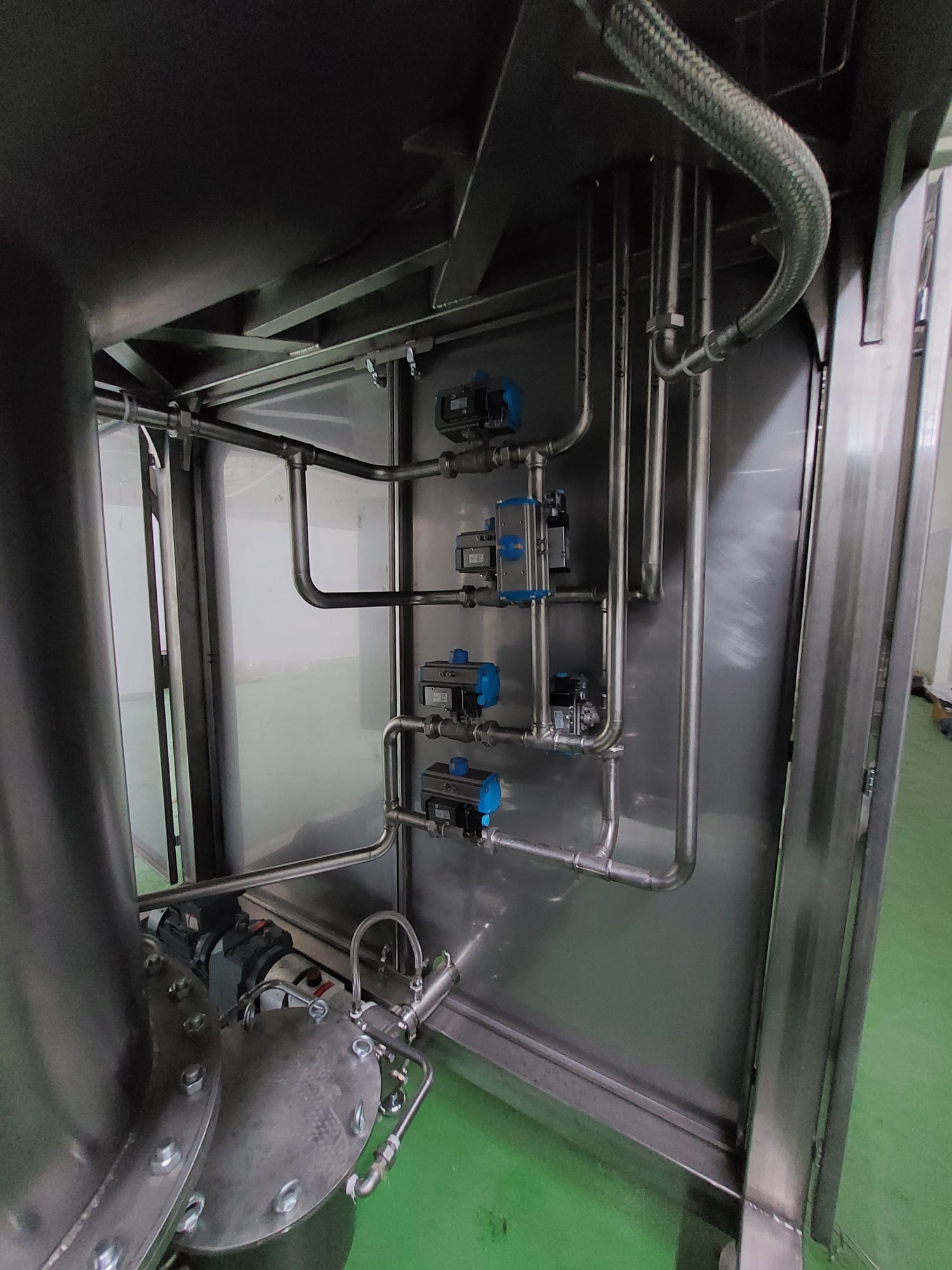

  • Cooling and heating system controlled by piston valves.
  • There is a 2.2 kW product sweetener to remove the gases formed in the product.
  • Product diverting system with 3-way valve.
  • Special design, AISI 304 quality stainless chassis and hood. (Stainless covers will be mounted on it.)
  • 63 rocwell hardened mixer steel shafts.
  • Magnetic Special design filter.
  •   2 pcs pay-pas pumps 2” 2,2 kW geared lop pump.
  • All hot and cold waters of the machine will be controlled by PT100 and automatic valves.

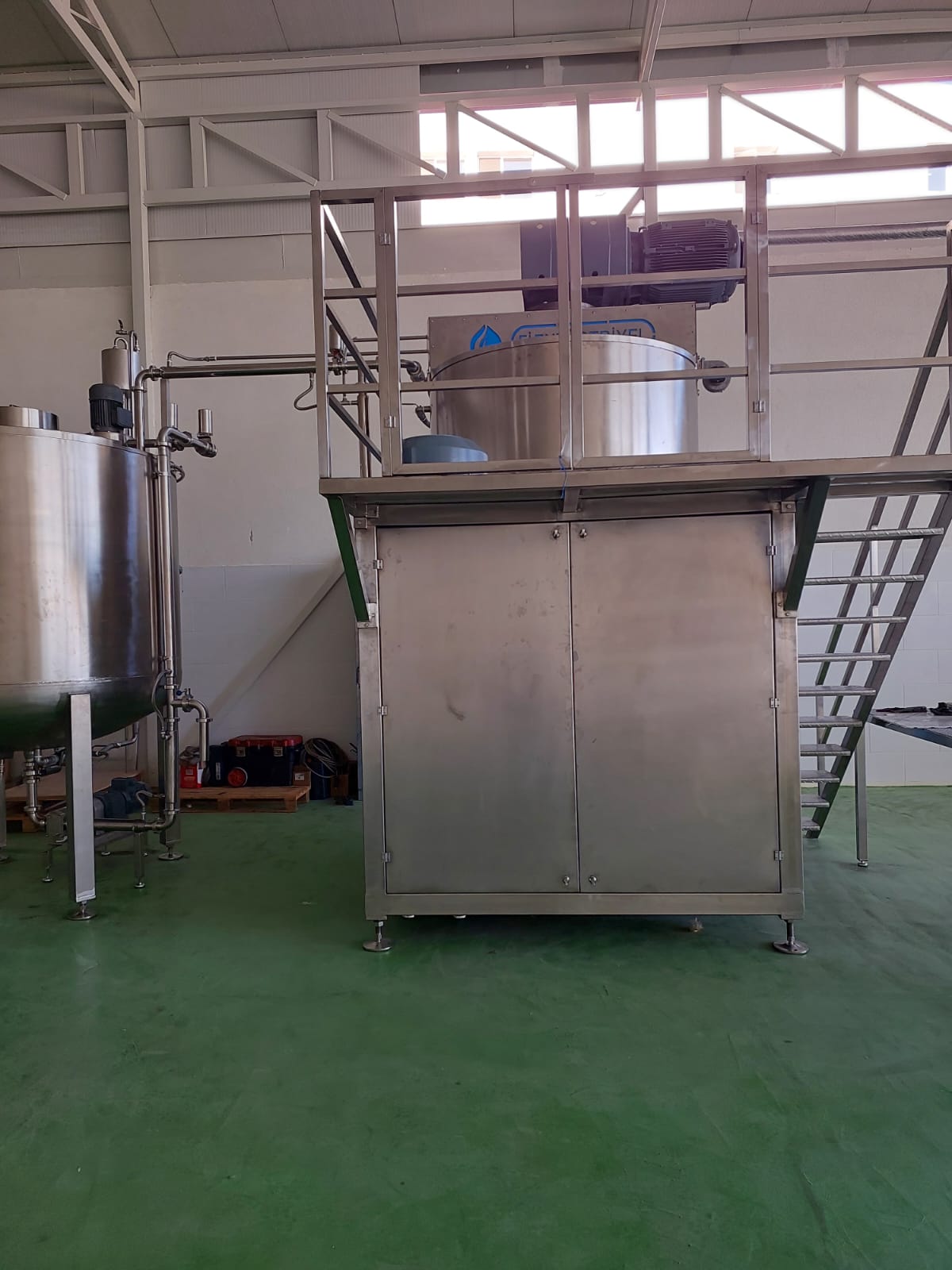

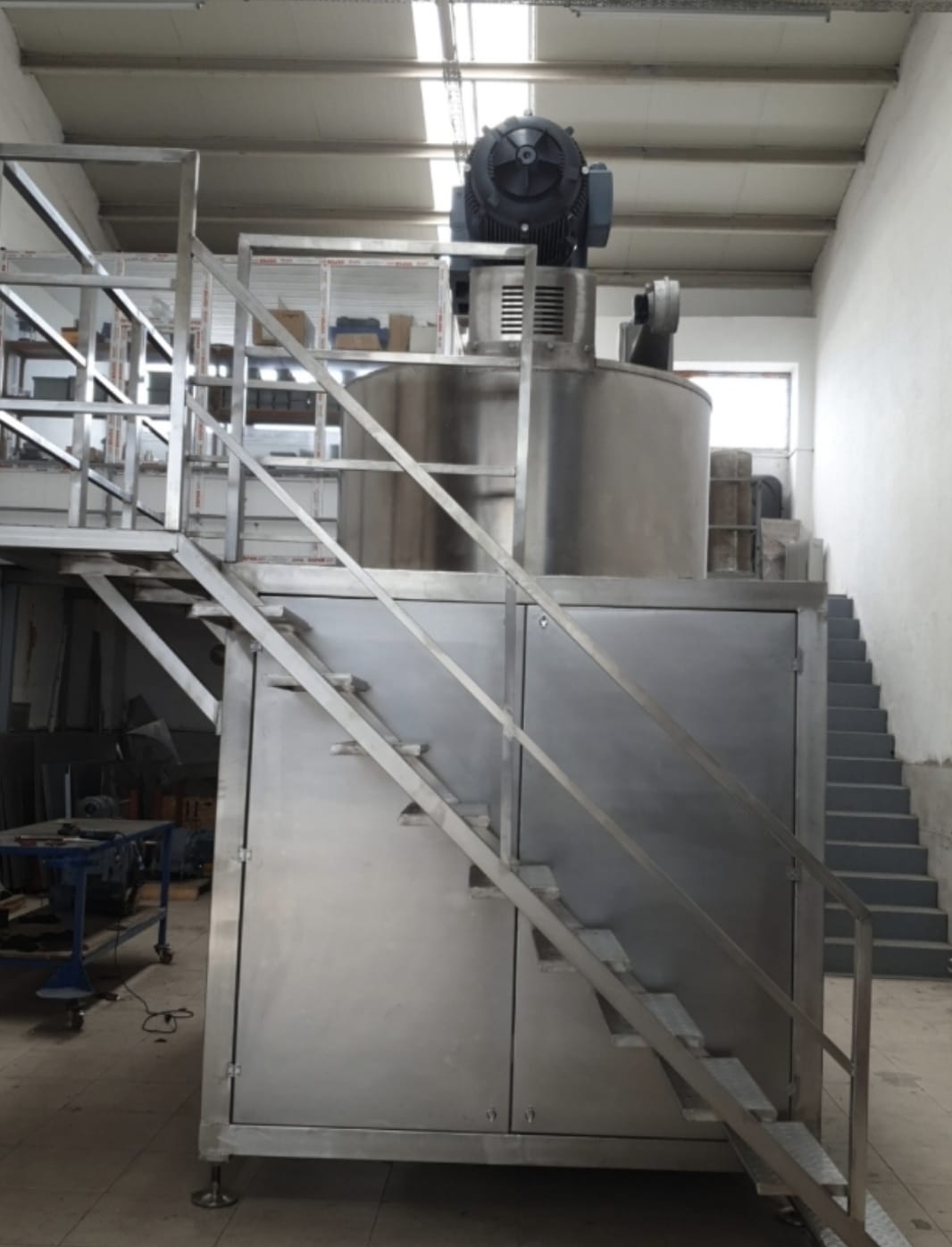

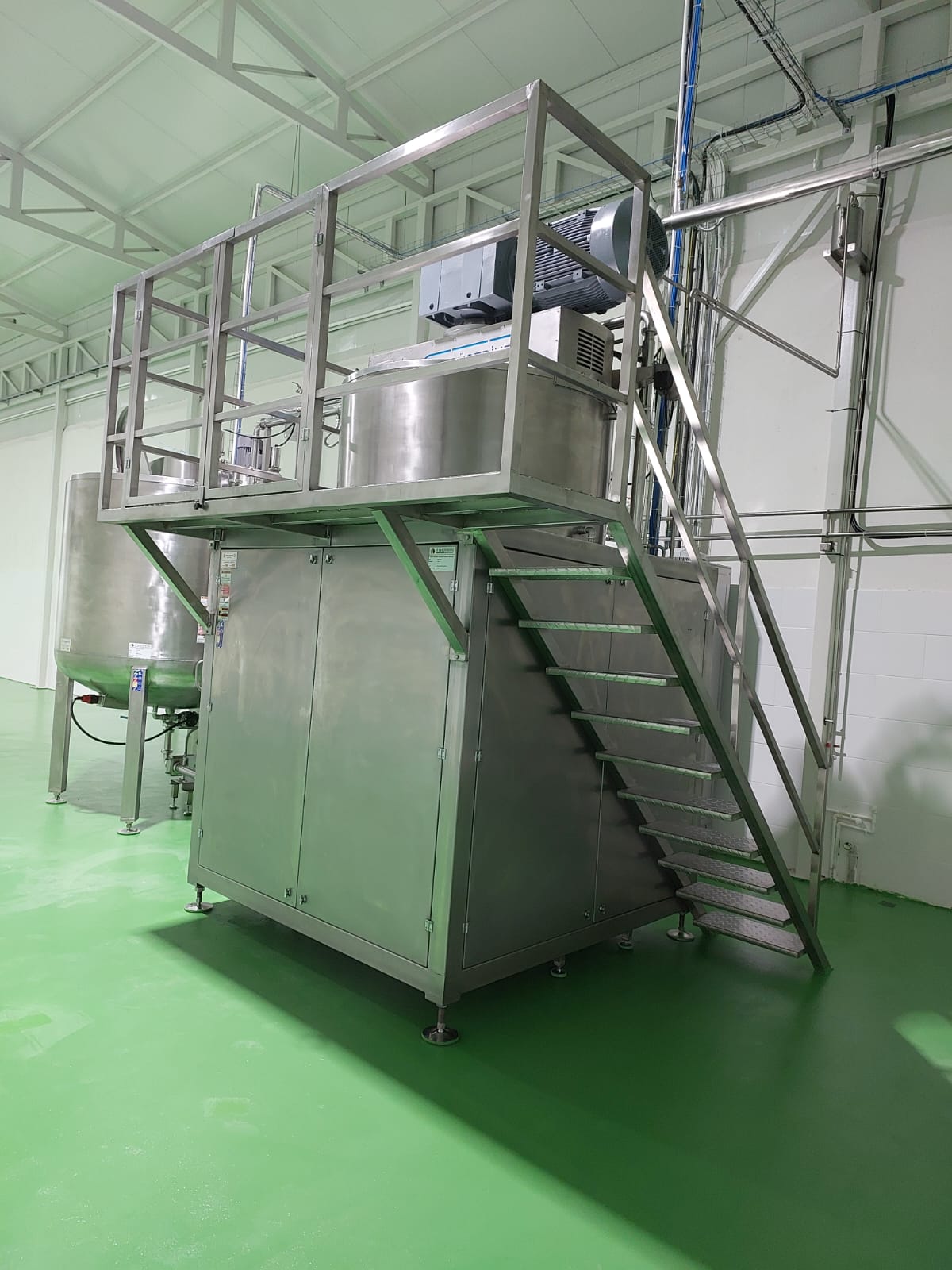

  • Stairs and platform.
  • 1000 kg hopper capacity.
